Shenzhen Zhongtu Automation Technology Co., Ltd. weideng0516@126.com 86-0755-2975-2717
รายละเอียดสินค้า
Place of Origin: China
ชื่อแบรนด์: ZT
ได้รับการรับรอง: CE, ISO, RoHS
Model Number: ZT-HXJ441-R
เงื่อนไขการชําระเงินและการจัดส่ง
Minimum Order Quantity: 1 SET
ราคา: USD 3100-3500/SET
Packaging Details: Wooden box
Delivery Time: 15-30 Day
Payment Terms: T/T
Supply Ability: 100SET/Month
Core Components: |
PLC, Motor |
Feeder Type: |
Vibration |
Soldering Iron Temperature Range: |
200-480℃ |
Machinery Test Report: |
Provided |
Soldering Iron Type: |
Electric |
Soldering Angle: |
Adjustable |
Axis: |
4 |
Soldering Iron: |
Detachable |
Core Components: |
PLC, Motor |
Feeder Type: |
Vibration |
Soldering Iron Temperature Range: |
200-480℃ |
Machinery Test Report: |
Provided |
Soldering Iron Type: |
Electric |
Soldering Angle: |
Adjustable |
Axis: |
4 |
Soldering Iron: |
Detachable |

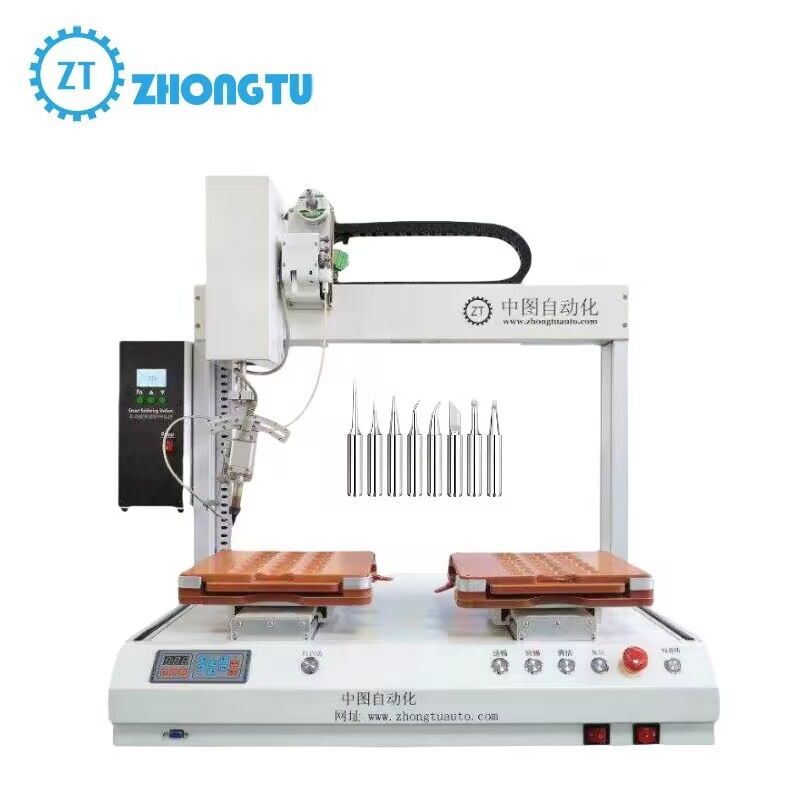

The Automatic Soldering Machine Precisely Position The Soldering Gun At The Location Where Soldering Is Required
Product Advantages
In an automatic soldering machine, the heating methods commonly adopted include electric heating tubes.There are two types: heating by electric heating elements and infrared heating. Electric heating is achieved by converting electrical energy into heat through electric heating elements.directly heat the solder to make it melt;
And infrared heating is achieved through infrared radiation.Heat the solder to its melting point. Both of these heating methods can quickly and uniformly melt the solder.When tin is heated to its melting point, the quality and stability of the welding are guaranteed.
The heat core can operate at high speed.Convert electrical energy into thermal energy to make the soldering iron tip reach the appropriate welding temperature. The feeding-soldering device is responsible for feeding solder at the set speed.And in terms of length, the tin wire is fed to the front end of the soldering iron tip to achieve the addition of solder during the soldering process.
Product Parameter
|
Name:
|
Automatic Soldering Robot
|
Place of Origin:
|
ShenZhen, China
|
|
|
Applicable Industries:
|
Manufacturing Plant, SMT , DIP
|
Key Selling Points:
|
Automatic
|
|
|
Video outgoing-inspection:
|
Provided
|
Weight (KG):
|
65Kg
|
|
|
Marketing Type:
|
New Product 2024
|
Voltage:
|
220/110V 50~60Hz
|
|
|
Warranty period:
|
1 Yea
|
Dimensions:
|
850*750*850mm
|
|
|
Warranty of core components:
|
3 Years
|
Solder Wire:
|
0.6~1.5mm solder wire
|
|
|
Core Components:
|
PLC
|
Temperature Accuracy
|
±3°
|
|
|
Power:
|
680W
|
Solder Feeding Speed
|
1~50mm/s
|
|
|
Current:
|
5A
|
Repeate Accuracy
|
±0.02mm
|
|
|
Model
|
ZT-HXJ041R
|
ZT-HXJ441-R
|
ZT-HXJ4411-02
|
ZT-HXJ4411-02R
|
Fixture Customization
|
|
Solder Power
|
200W
|
200/400w 600W
|
200/400W
|
200/400/600W
|
Need
|
|
Heating Temperature Range
|
0-550ºC
|
||||
|
Machine Axis Number
|
4axis
|
4axis
|
4axis
|
5axis
|
Max moving speed
|
|
X Axis
|
400mm
|
400mm
|
400mm
|
400mm/2X
|
600mm/s
|
|
Y Axis
|
300mm
|
300mm/2Y
|
300mm/2Y
|
300mm/2Y
|
600mm/s
|
|
Z Axis
|
100mm
|
100mm
|
100mm
|
100mm
|
400mm/s
|
|
R Axis
|
360°
|
360°
|
0
|
360°
|
±0.05° Error
|
|
Temperature Errors
|
±2°
|
||||
|
Tin Wire Diameter
|
φ0.6mm-1.5mm
|
||||
|
Teaching File Capacity
|
256MB, up to 999 files, single file up to 1000 points
|
||||
|
Air Pressure
|
4-5kg/cm²
|
||||
|
Weight(Kg)
|
58Kg
|
68Kg
|
75Kg
|
85Kg
|
Customized
|
|
Size(mm)
|
600*750*850
|
800*750*850
|
850*750*850
|
1000*750*850
|
To order
|
Detail Photos:
Our advantage
Our Services:
|
Pre-Sale
|
In Sale |
After Sale |
|
1.Product Introduction,
2.Technical Communication, 3.Remote consulting service.
|
1. Show the product,
2. Explain in detail how to use the product. 3. Answer the questions raised by customers. |
1.Support video service.
2.The whole equipment is guaranteed for 1 year;
3.The guide rail/motor/control parts is guaranteed for 3 years.
|
1. Who are we?
We are based in Guangdong, China, start from 2015, There are total about 50-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. What can you buy from us?
Soldering machine,Precision spot welding machine,Glue dispenser,Screw machine
4. Why should you buy from us not from other suppliers?
With ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT; Accepted Payment Currency:USD,EUR,HKD,CNY; Accepted Payment Type: T/T,PayPal,Cash;
6. What is your Warranty for the product? How do you carry out it?
We provide 1 Year Warranty for unit machine and 3 years warranty for main board.More details pls contact me.
7. May I buy samples from you?
Yes! You are welcome to place sample order to test our superior quality and service.
8. Are you just trading company or factory?
We are professional manufacturer for automation machine since 2015.
